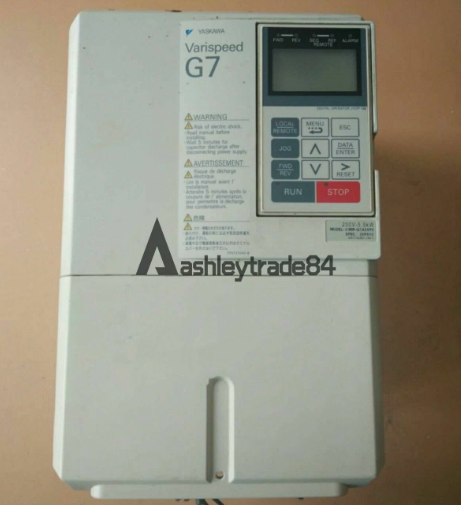

CIMR-G7A25P5 Yaskawa Variable Frequency Inverter 380 - 480VAC 2450/2500RPM
CIMR-G7A25P5 Description
The Yaskawa CIMR-G7A25P5 is a high-reliability, general-purpose vector control AC variable frequency drive (VFD) from the iconic Varispeed G7 series. Engineered for 200V class three-phase power supplies, this drive is specifically rated for 5.5 kW (7.5 HP) three-phase induction motors. It integrates advanced vector control technology and 3-level PWM output, delivering exceptional low-speed torque, precise speed regulation, and reduced electrical noise. With robust overload capacity, comprehensive protection mechanisms, and user-friendly operation, it is widely used in medium-duty industrial automation applications requiring stable, efficient motor control.
CIMR-G7A25P5 Key Features
- Dual Vector Control Modes: Supports V/f control, open-loop vector control, and closed-loop vector control to adapt to diverse application needs.
- 3-Level PWM Technology: Minimizes motor surge voltage, reduces electromagnetic interference (EMI), and extends motor winding and bearing lifespan.
- Strong Overload Capability: Handles 150% overload for 60 seconds (heavy-duty operation) and 200% overload for 0.5 seconds (peak load), ensuring reliability in demanding scenarios.
- Wide Frequency Range: Output frequency adjustable from 0.01 Hz to 400 Hz, suitable for both low-speed precision control and high-speed applications.
- Built-in PID Controller: Integrated process control function for automatic regulation of flow, pressure, temperature, or tension, ideal for pump, fan, and process control systems.
- Power Loss Ride-Thru: High-speed search and automatic restart function enables seamless recovery after momentary power interruptions, reducing production downtime.
- Comprehensive Protection: Equipped with overcurrent, overvoltage, undervoltage, overheating, input/output phase loss, motor overload, and stall prevention protections.
- Network Compatibility: Supports RS-485 communication for easy integration into industrial control networks; optional fieldbus modules available for expanded connectivity.
- User-Friendly Interface: 5-line backlit LCD keypad with parameter copy/backup functionality, supporting multiple languages for convenient operation and maintenance.
- Energy-Saving Design: Optimizes motor excitation current to reduce power consumption, especially in variable-load applications like pumps and fans.
CIMR-G7A25P5 Materials & Applications
Materials
- Housing: Heavy-duty cold-rolled steel chassis with anti-corrosion and anti-static coating, ensuring structural rigidity and durability.
- Power Components: High-performance IGBT power modules (insulated gate bipolar transistors) for efficient power conversion and long service life.
- Internal PCB: High-temperature resistant FR-4 glass epoxy circuit board with conformal coating, protecting against dust, moisture, and electrical interference.
- Cooling System: Forced-air cooling with a temperature-controlled, long-life DC fan, ensuring stable operation even in high-temperature environments.
- Terminals: Nickel-plated copper screw terminals, providing secure, low-resistance connections for power and control wiring.
- Internal Components: Industrial-grade electrolytic capacitors, reactors, and optocouplers, ensuring reliable performance in harsh industrial conditions.
Typical Applications
- Pumps & Fans: Energy-efficient control for HVAC systems, water treatment plants, ventilation systems, and industrial blowers.
- Material Handling: Conveyors, mixers, crushers, and automated storage/retrieval systems (AS/RS) requiring stable speed control.
- Machine Tools: Spindle and feed axis control for lathes, milling machines, grinders, and machining centers.
- Packaging & Printing: Form-fill-seal machines, labeling equipment, and printing presses needing precise speed and tension control.
- Textile & Rubber Machinery: Spinning machines, extruders, and calenders, where consistent speed regulation is critical.
- Food & Beverage Processing: Mixers, agitators, and processing lines, ensuring hygienic and efficient operation.
- General Industrial Equipment: Compressors, small injection molding machines, and other medium-duty machinery requiring variable speed control.
CIMR-G7A25P5 Important Parameters
| Parameter |
Specification |
| Part Number |
CIMR-G7A25P5 |
| Brand |
Yaskawa Electric |
| Series |
Varispeed G7 |
| Drive Type |
3-Phase AC Variable Frequency Drive (VFD) |
| Applicable Motor Rating |
5.5 kW (7.5 HP) |
| Input Voltage |
3-Phase AC 200~240 V, 50/60 Hz |
| Input Current |
26 A |
| Rated Output Capacity |
11.5 kVA |
| Rated Output Current |
22 A |
| Output Voltage |
3-Phase AC 0 ~ Input Voltage (adjustable) |
| Output Frequency Range |
0.01 ~ 400 Hz |
| Control Method |
V/f Control, Open-Loop Vector Control, Closed-Loop Vector Control |
| Overload Capacity |
150% for 60 seconds; 200% for 0.5 seconds |
| Carrier Frequency |
0.7 ~ 15 kHz (programmable) |
| Cooling Method |
Forced Air Cooling (temperature-controlled fan) |
| Protection Structure |
IP00 (Open Chassis) |
| Operating Temperature |
-10°C ~ +40°C (open chassis) |
| Storage Temperature |
-20°C ~ +65°C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Dimensions (W×H×D) |
Approx. 160 × 320 × 210 mm |
| Weight |
Approx. 7.0 kg |
| Certifications |
UL, cUL, CE, RoHS |
| Product Status |
Legacy / Discontinued (replaced by Yaskawa GA700 series) |
